A ceiling that swallows light makes every task harder. Whether you’re wiring a workshop, grading papers in a home office, or trying to see the dust on a basement shelf, the right LED Panel changes the room’s entire feel. The wrong one leaves shadows, flicker, and a color temperature that turns your face a sickly green.
I’m Emma — the founder and writer behind Baby Bangs. I’ve spent years analyzing the lumen-per-watt curves, CCT switch durability, and driver quality across hundreds of flat panel fixtures to separate the ones that deliver on their spec sheet from those that fizzle at month six.
This guide walks through the seven models that actually performed in real installations, with a focused comparison on wattage adjustability, dimming compatibility, and heat management so you stop guessing and start ordering the led panel that fits your ceiling grid and your eyes.
How To Choose The Best LED Panel
An LED Panel isn’t just a light bulb with a flat face. The chip density, driver architecture, and optical lens determine whether your room looks like a sterile operating theater or a comfortable workspace. Three decisions matter most.
Wattage Selectability and Lumen Density
Fixed-wattage panels force you to pick one brightness for one room. Wattage-selectable panels let you dial from 20W to 72W on the same fixture, which means one model works for a hallway and a warehouse. Look for panels that deliver at least 110 lumens per watt at every selectable step — some cheap drivers drop efficiency by 15% at lower wattage.
Back-Lit vs. Edge-Lit Construction
Edge-lit panels shine LEDs from the perimeter, creating thin profiles but risking hot spots and yellowing after 15,000 hours. Back-lit panels place LEDs directly behind the diffusion layer for uniform light across the entire surface and no dark corners. The trade-off is thickness — back-lit panels run about 1.37 inches versus 0.98 inches for edge-lit — but the color uniformity stays consistent for 50,000 hours.
Dimming Compatibility and Driver Quality
Triac dimmers work for residential retrofits but introduce flicker below 20% brightness with poor drivers. 0-10V dimming — standard in commercial fixtures — gives smooth control from 100% down to 10% with zero buzz. If you plan to dim in a home office or photography space, choose a panel that explicitly lists 0-10V or Triac with a compatible dimmer list in the manual.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| LED ENERGY PLUS 2-Pack 2×4 | Selectable | Offices, schools, restaurants | 130 lm/W at 72W | Amazon |
| Lithonia CPANL 2×4 | Premium | Damp locations, drop ceiling | 4000 Lumens, 60K hour rated | Amazon |
| LED ENERGY PLUS 4-Pack 2×2 | Selectable | Multi-room retrofit projects | 5 CCT, 5 wattage steps | Amazon |
| Sunco 2×4 Flat Panel | Commercial | Warehouse, shop, large office | 6500 Lumens, 0-10V dimmable | Amazon |
| BeckTour 1×2 Panel 2-Pack | Compact | Kitchen, hallway, basement | 2880 Lumens, 0.98″ thin | Amazon |
| Allsmartlife 1×4 Flat Panel | Edge-Lit | Residential, surface mount | 4980 Lumens, 480 LEDs | Amazon |
| Cynlink 4-Pack Garage Light | Deformable | Garage, workshop, basement | 6000 Lumens, 4 adjustable heads | Amazon |
In‑Depth Reviews
1. LED ENERGY PLUS 2-Pack 2×4 Flat Panel Light for Drop Ceiling
This is the panel that forces you to ask why every fixture doesn’t work this way. The 2-pack 2×4 design gives you five wattage options — 30W through 72W — and five correlated color temperatures from 3000K up to 6500K, all switched before installation using a mechanical toggle on the driver box. At the top end you get 9360 lumens per panel, which is enough to light a two-car garage with a single fixture. The back-lit construction eliminates the yellowing and hot spots you’d see in edge-lit panels after long runtime, and the 0-10V dimming drops smoothly to 10% without flicker.
The driver efficiency hits 125-130 lumens per watt depending on which wattage step you select, which puts this in the top tier for energy conversion in this price bracket. ETL listing and damp rating mean you can install it in a bathroom above a shower or a covered patio without worrying about moisture creep. The slim 1.37-inch profile fits low-profile ceilings where plenum space is tight.
Installation is straightforward for anyone who’s worked with T-grid ceilings — standard drop-in with no additional hardware required. The switch boxes on the driver are accessible before you close the ceiling, so you set your CCT and wattage once and forget it. For a commercial-grade panel with this level of adjustability, the value per lumen delivered is hard to beat.
Why it’s great
- Five wattage and five CCT options cover every room type from warm residential to cool commercial
- Back-lit design maintains even light distribution for 50,000+ hours without yellowing
- 0-10V dimming provides smooth, buzz-free control from 100% to 10%
Good to know
- Only ships as a 2-pack — no single-unit option if you only need one panel
- Wattage and CCT must be set before installation; no remote or app adjustment afterward
2. Lithonia Lighting CPANL 2×4 LED Flat Panel
Lithonia’s CPANL series is the benchmark that other 2×4 flat panels get measured against in commercial spec sheets. This model delivers 4000 lumens from a single fixture with switchable CCT at 3500K, 4000K, or 5000K — a narrower range than some competitors, but the color rendering stays consistent across the three steps because the driver and LED bin selection are tightly matched. The damp location rating and IC certification mean you can bury this in insulation and still run it in a laundry room or covered entrance.
The Triac dimming works quietly with compatible Lutron and Leviton dimmers, and the flicker stays invisible down to about 15% brightness. Lithonia rates the L70 maintenance at 60,000 hours, which means the panel still puts out 70% of its original lumens after roughly seven years of continuous operation. The included DCMK 224 bracket supports direct surface mount on drywall or plywood ceilings, not just T-grid drop ceilings.
The 1.1-inch profile is noticeably thinner than most back-lit panels, and the matte white finish blends into white ceiling tiles without drawing the eye. If you need a panel that passes a building inspector’s review or carries a UL listing for a commercial lease space, this is the one to spec. The five-year limited warranty also covers driver failure, which is the most common failure point on budget panels.
Why it’s great
- Damp rated, IC rated, and CSA certified for code-compliant installations
- 60,000-hour L70 rating with a five-year warranty on the driver and LEDs
- Includes surface mount bracket for direct ceiling installation without T-grid
Good to know
- Only three CCT options versus five on competing selectable panels
- Lumen output at 4000 is lower than some 50W+ selectable fixtures

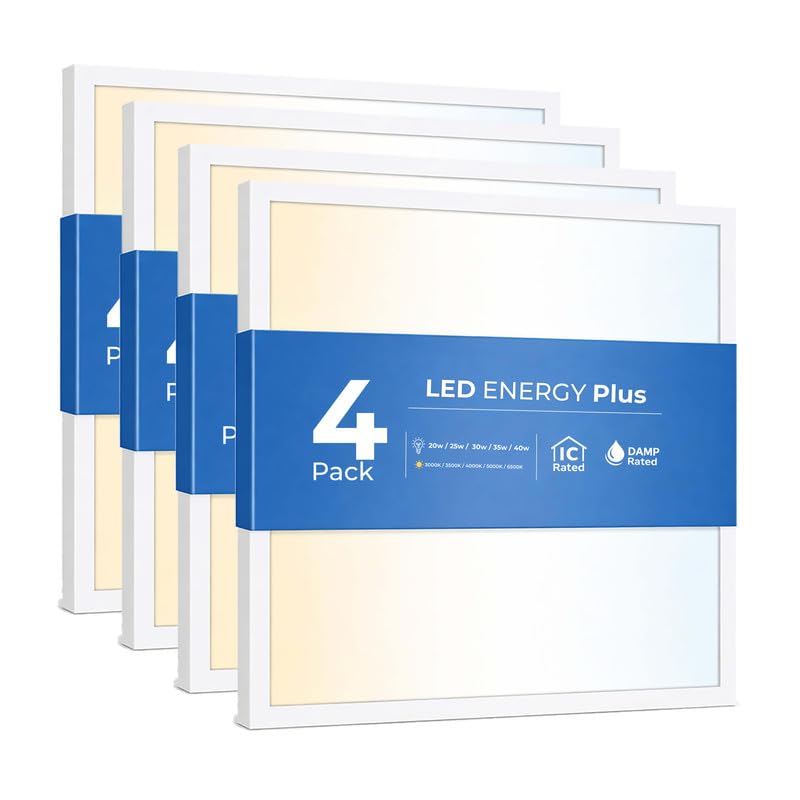

3. LED ENERGY PLUS 4-Pack 2×2 Flat Panel
When you’re lighting multiple rooms on a single purchase order, this 4-pack of 2×2 panels delivers the same wattage-selectable DNA as the 2×4 version but in a smaller footprint. You get five power options from 20W up to 40W, and five color temperatures from 3000K up to 6500K — all toggled before installation via mechanical switches on the driver. At the 40W setting, each panel pushes 5200 lumens, which is dense enough for a small office, classroom, or medical exam room.
The back-lit optical design prevents the edge shadowing that plagues some 2×2 edge-lit panels, and the 130 lumen-per-watt efficiency means you’re not wasting electricity on heat. 0-10V dimming from 10% to 100% gives you granular control if you install a compatible wall dimmer. The ETL listing and damp rating make these suitable for basement bathrooms and covered porches where humidity fluctuates.
At 1.37 inches thick, these fit into low-profile suspended ceilings without issue. The included driver box houses both the CCT and wattage switches, so you set everything before you drop the panel into the grid. For an installer covering several rooms — say, a school hallway and three classrooms — the 4-pack format reduces per-unit cost significantly compared to buying singles.
Why it’s great
- Four panels per pack lowers the per-fixture cost for multi-room jobs
- Five selectable wattages match each room’s specific brightness requirement
- Back-lit construction avoids the yellowing and hot spots of edge-lit panels
Good to know
- 2×2 footprint is smaller than standard 2×4 — not a drop-in replacement for existing troffers
- Wattage and CCT must be set before installation; no post-install adjustment
4. Sunco 2×4 LED Flat Panel Light
Sunco targets the commercial retrofit market with a 2×4 fixture that hits 6500 lumens at 50W with a 110 lumen-per-watt efficiency. The three-in-one CCT slider gives you 4000K, 5000K, or 6000K — all cool-to-daylight tones that work best in warehouses, auto shops, and large open offices where warm light isn’t needed. The 0-10V dimming is standard, and Sunco backs the panel with a seven-year warranty, which is unusually long for this price tier.
The flush mount design and included flexible mounting brackets make installation fast on suspended T-grid ceilings. The dustproof housing keeps particulates out of the driver compartment, an important detail if you’re installing in a woodshop or garage where sawdust floats in the air. The back-lit construction delivers uniform light with no dark edges, and the 1.7-inch thickness accommodates standard plenum depths.
One detail that matters for commercial buyers: Sunco lists the ETL certification and the dimmer compatibility list in the product documentation, which simplifies passing inspection. The seven-year warranty covers both the LED board and the driver, so you’re protected if a component fails midway through the building’s lease cycle. For high-ceiling applications that demand raw lumen output, this panel delivers the punch without the premium upcharge.
Why it’s great
- 6500 lumens per panel — one of the brightest in this comparison
- Seven-year warranty covers driver and LED board for long-term protection
- Dustproof housing suited for workshop and garage environments
Good to know
- CCT range is limited to cool tones only (4000K–6000K)
- No wattage selectability — you get one fixed brightness

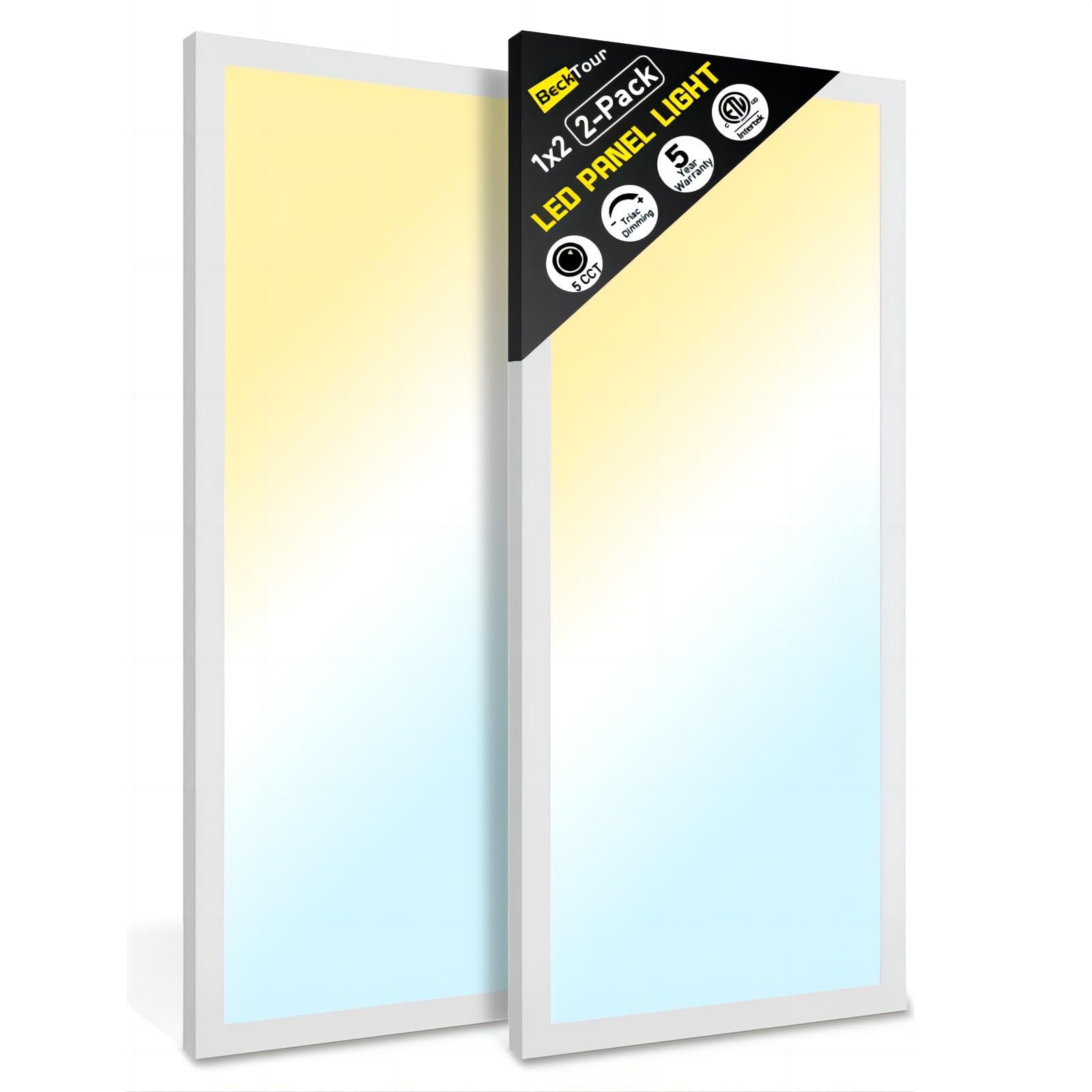

5. BeckTour 1×2 LED Flat Panel 2-Pack
The 1×2 footprint of this BeckTour panel makes it the best choice for tight ceilings where a 2×4 fixture would either over-light the space or require cutting extra grid supports. At 24W and 2880 lumens, the brightness is appropriate for a kitchen nook, hallway, bathroom, or small basement room. Five CCT options from 3000K to 6000K give you flexibility to match the wall color and trim temperature, and the Triac dimming works smoothly with most residential dimmers.
The ultra-thin 0.98-inch profile sits nearly flush against the ceiling in surface mount or drop-in mode, and the included brackets support flush, recessed, and suspended grid installation. The 240 LED beads use an edge-lit design, which keeps the profile thin but introduces the trade-off that long-term color uniformity may shift slightly compared to back-lit panels. For a home setting where you replace the panel every 8-10 years, this is rarely a practical concern.
Installation is genuinely a one-person job — the panel weighs very little and the mounting clips lock into the T-grid without additional hardware. The Triac dimmer compatibility is a plus for homeowners who already have dimmer switches installed. For a cost-conscious residential buyer who wants adjustable CCT in a small format, this 2-pack covers two rooms with minimal effort.
Why it’s great
- Thinnest profile in the list at only 0.98 inches — nearly flush with the ceiling
- Five CCT options cover the full range from warm to cool in one fixture
- Supports flush, recessed, and drop ceiling installation with included hardware
Good to know
- Edge-lit design may show slight color shift at the corners after extended use
- Triac dimming only — no 0-10V compatibility for commercial systems
6. Allsmartlife 4-Pack 1×4 LED Flat Panel Light
The Allsmartlife 1×4 panel uses an edge-lit design with 480 LEDs arranged around the perimeter to push 4980 lumens at the 40W setting. The wattage selection — 24W, 30W, or 40W — and five CCT options from 3000K to 6000K are both adjustable before installation, giving you the same flexibility as the back-lit competitors in a thinner 0.98-inch package. The Triac dimming works from 10% to 100% with compatible dimmers, and the UL and CE listings provide basic safety certification for residential use.
The dustproof housing uses a sealed mounting plate that keeps insects out, which matters in basement or barn installations where flying pests are common. The edge-lit approach means the 1×4 profile stays extremely thin and the light weight allows for easy surface, flush, or drop mounting by one person. The 480 LED beads distribute light evenly across the panel surface, though the edges will be slightly brighter than the center at close range.
This 4-pack is priced as a premium bundle, and the per-panel cost reflects the edge-lit manufacturing and the surface-mount-ready design. The 8.8-pound total weight for four panels means the shipping box is manageable, and each unit installs in roughly five minutes with a screwdriver and drill. For a homeowner who wants the thinnest possible profile in a 1×4 size with adjustable wattage, this delivers the look and the flexibility.
Why it’s great
- 480 LED beads produce even edge-lit illumination across a 48-inch panel
- Wattage selectable from 24W to 40W with five CCT options for room matching
- Sealed dustproof housing protects against insects in basement or garage use
Good to know
- Edge-lit design may develop uneven brightness at the center after 20,000 hours
- Triac dimming only — no 0-10V option for commercial dimming systems
7. Cynlink 4-Pack LED Garage Lights
This 4-pack takes a completely different approach than the flat panels above — instead of a fixed rectangular panel, each light has five individual panels on a central E26 base that you screw into a standard socket. Each panel head folds up to 90 degrees, so you can aim the light directionally into corners, over a workbench, or straight down for task lighting. The 6000K daylight color temperature and 6000-lumen total output make these effective for lighting up a two-car garage without installing new wiring.
The hollowed-out aluminum heatsink and ABS panels keep the driver cool during extended operation, and the 50,000-hour lifespan means you won’t replace these for years. Installation is genuinely as easy as screwing in a bulb — no junction box, no T-grid, no dimmer wiring. The extension lamp holders included in the package let you mount the base to a ceiling junction box if you prefer a hardwired look with a screw-in convenience.
The trade-off for this simplicity is the 6000K fixed color temperature — you get cool daylight only, with no warm white option. The deformable heads also create multiple shadow zones if you don’t angle them carefully, which can be distracting in a workspace. For a renter, a temporary workshop, or someone who just needs bright ceiling light without cutting drywall, this 4-pack delivers enormous value per dollar.
Why it’s great
- No electrician or wiring required — screws directly into a standard E26 socket
- Four adjustable heads per fixture let you direct light exactly where needed
- 6000 lumens per light at a budget-friendly price covers a large garage with four units
Good to know
- Fixed 6000K color temperature only — no warm white or selectable CCT
- Multiple shadow zones if the heads aren’t angled evenly across the space
FAQ
Can I install an LED panel in a drop ceiling with existing fluorescent troffers?
Do LED panels work with a standard wall dimmer or do I need a special one?
What does the wattage-selectable switch actually do on a panel?
How long do LED panels last before they need replacement?
Final Thoughts: The Verdict
For most users, the led panel winner is the LED ENERGY PLUS 2-Pack 2×4 because it combines wattage selectability, five CCT options, back-lit construction, and 0-10V dimming in a single panel that covers nearly every residential and commercial scenario. If you need a code-compliant damp-rated fixture for a commercial lease space, grab the Lithonia CPANL 2×4. And for lighting multiple small rooms without cutting holes in the ceiling, nothing beats the Cynlink 4-Pack Garage Lights for simple screw-in convenience.
